A2 – Initial-Conditions Ingestion Benchmark#

Benchmarks end-to-end ingestion time for all IC backends available in aifs_modal:

#

Backend

Runs

Source

Credentials

1

IFS from open-data

local

ECMWF open-data S3 (AWS)

none

2

ERA5 from CDS

local

Copernicus CDS API

~/.cdsapirc or CDSAPI_* env vars

3

IFS from Brightband

Modal (us-east)

Brightband ECMWF IFS on ArrayLake (zarr)

ARRAYLAKE_API_TOKEN

4

ERA5 from ARCO

Modal (us-central1)

Google Cloud Storage zarr (anonymous)

none

Local backends (1–2) write to a temporary directory; Modal backends (3–4) write into the shared IC Volume. The comparison covers the full round trip: fetch → regrid → zarr write.

Each benchmark ingests two timesteps (t-6h and t) — the minimum needed for a forecast.

Prerequisites: ~/.cdsapirc or CDSAPI_URL/CDSAPI_KEY env vars for ERA5 from CDS; ARRAYLAKE_API_TOKEN for Brightband; a Modal workspace for ARCO.

import datetime as dt
import tempfile
import time

import matplotlib.pyplot as plt
import pandas as pd

import aifs_modal
from aifs_modal import _ingest_ekd

Configuration#

Two consecutive 6-hourly analysis dates (t-6h and t). Each backend fetches ~94 global variables, regrids from 0.25° lat/lon to N320, and writes two zarr groups into the target bucket.

Set STORAGE_BUCKET to a bucket you can write to, and the PREFIX_* values to throwaway key prefixes — this notebook will write and commit real data there.

# Brightband source repo (ECMWF IFS initial conditions on ArrayLake)
SOURCE_AL_REPO = "martibosch/ecmwf-ifs-hres-ics-open"

_today_00z = dt.datetime.now(dt.UTC).replace(hour=0, minute=0, second=0, microsecond=0)

# IFS sources (ifs-arraylake): 2 days ago — safely within all rolling windows
_ifs_end = _today_00z - dt.timedelta(days=2)
IFS_DATE_START = (_ifs_end - dt.timedelta(hours=6)).isoformat()
IFS_DATE_END = _ifs_end.isoformat()

# ERA5 sources (era5-arco): 7 days ago — past the ~5-day publication lag
_era5_end = _today_00z - dt.timedelta(days=7)
ERA5_DATE_START = (_era5_end - dt.timedelta(hours=6)).isoformat()
ERA5_DATE_END = _era5_end.isoformat()

print(f"IFS  dates : {IFS_DATE_START} → {IFS_DATE_END}")
print(f"ERA5 dates : {ERA5_DATE_START} → {ERA5_DATE_END}")

IFS  dates : 2026-05-11T18:00:00+00:00 → 2026-05-12T00:00:00+00:00
ERA5 dates : 2026-05-06T18:00:00+00:00 → 2026-05-07T00:00:00+00:00

1. IFS initial conditions from CDS (local)#

Fetches ECMWF open-data GRIB from AWS, regrids to N320, and writes the zarr group to the target bucket. No credentials needed.

with tempfile.TemporaryDirectory() as ic_dir:
    t0 = time.perf_counter()
    _ingest_ekd.ingest(IFS_DATE_START, IFS_DATE_END, ic_dir, "ifs-ekd")
    ifs_ekd_elapsed = time.perf_counter() - t0

print(f"IFS from open-data (local): ingested in {ifs_ekd_elapsed:.1f} s")

[1/2] ingesting ifs-ekd 2026-05-11T18:00:00+00:00

By downloading data from the ECMWF open data dataset, you agree to the terms: Attribution 4.0 International (CC BY 4.0). Please attribute ECMWF when downloading this data.

[2/2] ingesting ifs-ekd 2026-05-12T00:00:00+00:00

Recovering from HTTP error [503 Slow Down], attempt 1 of 500
Retrying in 120 seconds

Wrote ifs-ekd initial conditions from 2026-05-11T18:00:00+00:00 to 2026-05-12T00:00:00+00:00 (2/2 new dates)
IFS from open-data (local): ingested in 233.8 s

2. ERA5 from CDS (local)#

Submits CDS API requests (surface, soil, pressure-level), waits for the jobs to complete on the CDS side, downloads GRIB files, regrids to N320, and writes to the bucket. Latency is dominated by the CDS queue and download time over the public internet.

with tempfile.TemporaryDirectory() as ic_dir:
    t0 = time.perf_counter()
    _ingest_ekd.ingest(ERA5_DATE_START, ERA5_DATE_END, ic_dir, "era5-cds")
    era5_cds_elapsed = time.perf_counter() - t0

print(f"ERA5 from CDS (local): ingested in {era5_cds_elapsed:.1f} s")

[1/2] ingesting era5-cds 2026-05-06T18:00:00+00:00

2026-05-14 08:33:23,982 INFO [2025-12-11T00:00:00] Please note that a dedicated catalogue entry for this dataset, post-processed and stored in Analysis Ready Cloud Optimized (ARCO) format (Zarr), is available for optimised time-series retrievals (i.e. for retrieving data from selected variables for a single point over an extended period of time in an efficient way). You can discover it [here](https://cds.climate.copernicus.eu/datasets/reanalysis-era5-single-levels-timeseries?tab=overview)
2026-05-14 08:33:23,983 INFO Request ID is 58d91866-ae26-4059-98fc-d688dc1dcd1a
2026-05-14 08:33:24,038 INFO status has been updated to accepted
2026-05-14 08:33:37,726 INFO status has been updated to running
2026-05-14 08:33:57,466 INFO status has been updated to successful

2026-05-14 08:34:04,020 INFO [2025-12-11T00:00:00] Please note that a dedicated catalogue entry for this dataset, post-processed and stored in Analysis Ready Cloud Optimized (ARCO) format (Zarr), is available for optimised time-series retrievals (i.e. for retrieving data from selected variables for a single point over an extended period of time in an efficient way). You can discover it [here](https://cds.climate.copernicus.eu/datasets/reanalysis-era5-single-levels-timeseries?tab=overview)
2026-05-14 08:34:04,020 INFO Request ID is a13447c0-6a10-41e2-a7b3-8635bd149b38
2026-05-14 08:34:04,067 INFO status has been updated to accepted
2026-05-14 08:34:19,115 INFO status has been updated to running
2026-05-14 08:34:26,761 INFO status has been updated to successful

2026-05-14 08:34:29,719 INFO Request ID is b7676468-374b-45cb-ab44-cba3089cc3df
2026-05-14 08:34:29,891 INFO status has been updated to accepted
2026-05-14 08:34:41,524 INFO status has been updated to running
2026-05-14 08:34:57,988 INFO status has been updated to successful

[2/2] ingesting era5-cds 2026-05-07T00:00:00+00:00

2026-05-14 08:35:29,218 INFO [2025-12-11T00:00:00] Please note that a dedicated catalogue entry for this dataset, post-processed and stored in Analysis Ready Cloud Optimized (ARCO) format (Zarr), is available for optimised time-series retrievals (i.e. for retrieving data from selected variables for a single point over an extended period of time in an efficient way). You can discover it [here](https://cds.climate.copernicus.eu/datasets/reanalysis-era5-single-levels-timeseries?tab=overview)
2026-05-14 08:35:29,219 INFO Request ID is 9ea79f05-94c7-4509-8bdd-11b548feb84e
2026-05-14 08:35:29,278 INFO status has been updated to accepted
2026-05-14 08:35:39,972 INFO status has been updated to running
2026-05-14 08:35:52,737 INFO status has been updated to successful

2026-05-14 08:35:57,585 INFO [2025-12-11T00:00:00] Please note that a dedicated catalogue entry for this dataset, post-processed and stored in Analysis Ready Cloud Optimized (ARCO) format (Zarr), is available for optimised time-series retrievals (i.e. for retrieving data from selected variables for a single point over an extended period of time in an efficient way). You can discover it [here](https://cds.climate.copernicus.eu/datasets/reanalysis-era5-single-levels-timeseries?tab=overview)
2026-05-14 08:35:57,586 INFO Request ID is f7685d25-c809-4438-90d8-8fd0eeddcab2
2026-05-14 08:36:00,500 INFO status has been updated to accepted
2026-05-14 08:36:24,010 INFO status has been updated to successful

2026-05-14 08:36:26,548 INFO Request ID is 18125175-81ed-4fdb-a4f3-28bba98737c5
2026-05-14 08:36:26,595 INFO status has been updated to accepted
2026-05-14 08:36:40,735 INFO status has been updated to running
2026-05-14 08:36:50,730 INFO status has been updated to successful

Wrote era5-cds initial conditions from 2026-05-06T18:00:00+00:00 to 2026-05-07T00:00:00+00:00 (2/2 new dates)
ERA5 from CDS (local): ingested in 252.3 s

3. IFS initial conditions from Brightband (local)#

Reads zarr data directly from the Brightband ECMWF IFS dataset on the Earthmover ArrayLake marketplace, maps variable names to the AIFS convention, regrids from 0.25° lat/lon to N320, and writes to the target bucket. Requires an authenticated arraylake.Client.

t0 = time.perf_counter()
with aifs_modal.app.run():
    aifs_modal.ingest_ifs_arraylake.remote(
        IFS_DATE_START,
        IFS_DATE_END,
        ic_source_repo=SOURCE_AL_REPO,
    )
ifs_al_elapsed = time.perf_counter() - t0

print(f"IFS from Brightband (Modal us-east): ingested in {ifs_al_elapsed:.1f} s")

4. ERA5 from ARCO (Modal, us-central1)#

Runs on Modal in the us-central1 region, co-located with the public ARCO-ERA5 bucket on GCS. A single Modal container fetches and writes both dates sequentially. The measured time includes Modal container cold-start and the final icechunk commit — i.e. the full wall-clock cost.

with aifs_modal.app.run():
    t0 = time.perf_counter()
    aifs_modal.ingest_era5_arco.remote(
        ERA5_DATE_START,
        ERA5_DATE_END,
    )
    era5_arco_elapsed = time.perf_counter() - t0

print(f"ERA5 from ARCO (Modal us-central1): ingested in {era5_arco_elapsed:.1f} s")

ERA5 from ARCO (Modal us-central1): ingested in 124.2 s

Comparison#

results = pd.DataFrame(
    {
        "backend": [
            "IFS from open-data (local)",
            "ERA5 from CDS (local)",
            "IFS from Brightband (Modal us-east)",
            "ERA5 from ARCO (Modal us-central1)",
        ],
        "elapsed_s": [
            ifs_ekd_elapsed,
            era5_cds_elapsed,
            ifs_al_elapsed,
            era5_arco_elapsed,
        ],
    }
).set_index("backend")
results["speedup"] = results["elapsed_s"].max() / results["elapsed_s"]
results.style.format({"elapsed_s": "{:.1f} s", "speedup": "{:.1f}×"})
  elapsed_s speedup
backend
IFS from open-data (local) 233.8 s 1.1×
ERA5 from CDS (local) 252.3 s 1.0×
IFS from Brightband (Modal us-east) 43.9 s 5.7×
ERA5 from ARCO (Modal us-central1) 124.2 s 2.0×

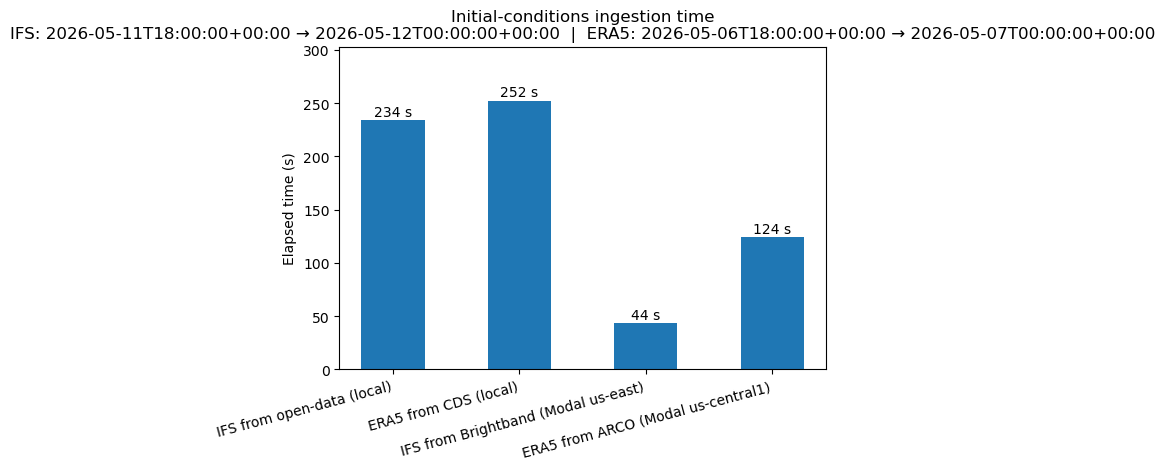

fig, ax = plt.subplots()
bars = ax.bar(results.index, results["elapsed_s"], width=0.5)
for bar, val in zip(bars, results["elapsed_s"]):
    ax.text(
        bar.get_x() + bar.get_width() / 2,
        bar.get_height() + 1,
        f"{val:.0f} s",
        ha="center",
        va="bottom",
    )
ax.set_ylabel("Elapsed time (s)")
ax.set_title(
    f"Initial-conditions ingestion time\n"
    f"IFS: {IFS_DATE_START} → {IFS_DATE_END}  |  "
    f"ERA5: {ERA5_DATE_START} → {ERA5_DATE_END}"
)
ax.set_ylim(0, max(results["elapsed_s"]) * 1.2)
fig.autofmt_xdate(rotation=15, ha="right")
fig.tight_layout()
../_images/8b070f87d843e44c9f2e30ea0cfc93fb94535530e3f9ac2b18f970bdfb132159.png

Summary#

  • IFS from open-data (local) — fetches ECMWF open-data GRIB from AWS via earthkit-data, regrids to N320. No credentials needed. ~2 years of coverage.

  • ERA5 from CDS (local) — submits CDS API requests (surface, soil, pressure-level), waits for the CDS queue, downloads GRIB, regrids to N320. Covers the full ERA5 archive back to 1940; queue latency dominates.

  • IFS from Brightband (Modal, us-east) — zarr-to-zarr read with variable name mapping and regrid from the Earthmover ArrayLake marketplace. Requires ARRAYLAKE_API_TOKEN.

  • ERA5 from ARCO (Modal, us-central1) — one Modal container handles both dates sequentially, co-located with the public GCS bucket. Includes cold-start and volume commit overhead.

Cleanup#

Remove all benchmark data from the bucket.

# IC data is written to the Modal IC Volume and auto-cleaned by run_forecast.
# No S3 objects to delete here.
